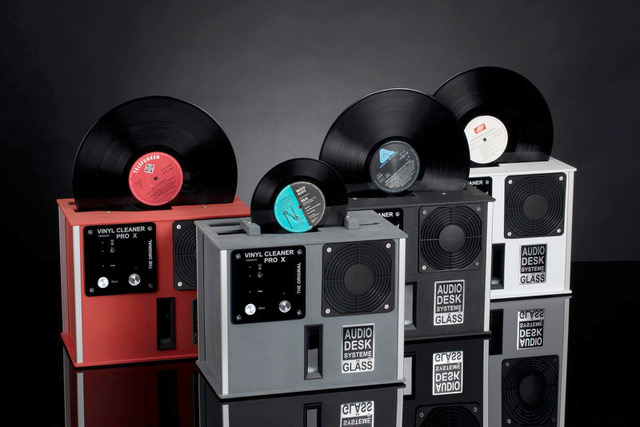

The 2022 Vinyl Cleaner PRO X is the latest version of the award-winning ultrasonic LP cleaning system.
NOTE: Comes with 2 vials of fluid concentrate. Buy extra fluid individually or in a 4 pack where you pay for 3 and get one free.
Incorporating ten years of evolutionary enhancements in addition to important upgrades to internal component parts, the 2021 Vinyl Cleaner PRO offers better features and performance, and also promises better reliability.
Features of the 2022 Vinyl Cleaner PRO include:
- Enhanced cleaning and drying including new ultrasonic management software and new high-performance Black Wipers.
- Quick release of LP at end of drying cycle.
- Quieter running thanks to new fans.
The Vinyl Cleaner PRO is now available in Gray standard finishe and also offered in upgrade white, black and red finishes for an extra $99.
The 2022 Audio Desk Systeme Vinyl Cleaner PRO X is the latest version of the first and only record cleaning machine that incorporates an ultrasonic cleaning cycle in addition to a more conventional mechanical cleaning via bi-directional rotating microfiber cleaning drums, and the result is the cleanest LP's ever. Unlike other record cleaners the ultrasonic Vinyl Cleaner bursts millions of microscopic bubbles off the surface of the record all the way to the bottom of the groove, where no fiber is fine enough to reach. And among LP cleaners the Audio Desk System Vinyl Cleaner is unique in using filtered air for drying, rather than one of the static-inducing suction systems employed by other record cleaning machines.
This vinyl record cleaner is fully automatic - just put the LP in the slot, push the button, and come back in 6 minutes (or tomorrow!) for a thoroughly cleaned and dried LP (both sides). Whole new layers of inner detail and air are revealed in the recordings, and of course most surface noise is eliminated.
Comes with 2 vials of a proprietary cleaning fluid developed specifically for this machine. A container of the fluid concentrate plus a gallon of distilled water cleans 150 new LP's, or 100 used LP's.
From the designer:
Records are precious. Not only are they arguably the best-sounding medium for reproduced music, but they often constitute irreplaceable collections. Even with careful handling contamination cannot be avoided in the long term. It is also well known that residual compounds from the LP pressing process obscure inner detail unless removed by cleaning even new records.
Reiner Glass of Audiodesksysteme has developed a professional quality, easy to use record washing machine he call the "Vinyl Cleaner". The Vinyl Cleaner is fully automatic. The record is placed perpendicularly from above into the equipment opening and the red activation button is pressed. When the green LED shines, the clean LP can be removed. During the cleaning process rotary cleaning barrels made from a microfiber material move in opposite directions while a unique ultrasonic system carefully and thoroughly removes even the finest contaminants from the grooves. In use the cleaning solution is thoroughly filtered to avoid re-contamination of the LP. Two high performance fans guarantee effective drying with quiet operation.
Cleaning Time: approx. 6 minutes
Size: 13"w x 8" d x 10.7" h (33cm w x 20cm d x 27cm h)
Weight: 12lbs (8.5kg (19lbs)kg)
Cleaning Solution: 4.5 liters (1.2 gal) of distilled water added to 20ml of cleaning concentrate.
Technical: How can sound clean?
Ultrasonic is sound generated above the human audible level.
A physical effect called "cavitation" results from the generation of ultrasonic frequencies in a liquid. In this cavitation process ultrasonic "compression waves" are created by an ultrasonic transducer. When the amplitude of this soundwave increases to a level where the surface tension of the liquid is broken, the fluid will "tear" apart leaving behind millions of microscopic vacuum bubbles. These vacuum bubbles then rapidly compress or implode creating millions of tiny liquid jets small enough to clean inside the smallest grooves of an LP. This process, also called "microagitation," displaces any contaminants on the surface of the LP.
Design concept notes from the original introduction of the first VINYL CLEANERS in 2010:
Dear friends of analogue reproduction,
We have something in common: we all love our record collections and guard our musical companions like small treasures - well aware of the unrivaled sound the black discs offer. Nevertheless we all know „companions” and their associated side effects: dust, dirt, finger prints, and the faux pas of the past, all leave their traces. With the advancing age of the disc, and increasing levels of contamination, the sound enjoyment dwindles. To put a stop to this only professional cleaning fits the bill, however having exhaustively tested disc cleaners the customary solutions available couldn't wholly satisfy me: either cleaning effectiveness, the associated noise, protection of the disc surface, ease of handling, longevity, or last but not least, the price, left something to be desired. It soon became clear to me that in order to fully satisfy all the listed criteria I would have to look for a solution of my own.
Four years of development have since passed, the result: the VINYL CLEANER!
The VINYL CLEANER is a disc cleaning machine that follows a different path: the cleaning process is fully automatic, simultaneously for both sides, ultrasonically, and by means of counter-rotating microfibre cleaning barrels, with subsequent drying. This form of cleaning is not only quieter and more convenient, it is above all highly effective and extremely gentle on the disc's surfaces. Your discs sparkle as never before and most importantly: the sound is closer to the music.
With the VINYL CLEANER you can acquire a high-performance disc cleaner, which is the realization of that which is possible, and in a cost optimized form, and which you and your treasured record collection will enjoy for a long time to come.
Cleaning and Drying VINYL CLEANER
The VINYL CLEANER - (not) a matter of philosophy
One can speak about two primary philosophies, two different approaches, that are used in disc cleaning (if you disregard the generally ineffective cleaning by hand): surface suction and point suction. Without wanting to go into the pros and cons of these two procedures, both have one common denominator - suction: I have heard the credo „the disc needs to undergo suction cleaning in order to become really clean“, at various high-end trade fairs and in diverse analogue forums. This statement is underlined by the product offerings on the market: there appears little alternative to suction cleaning.
I wish I could claim that by discussing this topic we have arrived at the gist of the matter - but in the case of disc cleaning the one thing all can agree on: when the dirt loosening process is not carried out effectively, then suction cleaning (or any other clever procedure) simply won't bring good results.
The VINYL CLEANER - a clean machine
In order to loosen dirt, residues, and other contaminants from the disc surface, the standard approach employs brushes. The cleaning results are at least as various and diverse as the brush materials that are used. From the shape of the brush, to the pressure and angle applied, to the speed of turning, numerous criteria, which have to work optimally together, play an important role in order to form the basis for efficient disc cleaning.
Unfortunately the worst case scenario occurs too often: instead of removing the dirt it is forced even deeper into the grooves, or spread across the entire disc surface, or worst of all, the analogue killer, the disc surface is damaged.
The VINYL CLEANER - a dust remover
The VINYL CLEANER doesn't rely on brushes to remove dust and other contaminants. Counter-rotating microfibre wet cleaning barrels, and the ultrasonic process, remove dirt gently yet thoroughly; even the finest particles sitting deep in the grooves of the disc. The cleaning fluid is recirculated and filtered during the cleaning process - in this way the dirt removed, or “shaken,” from the disc can't find it's way directly or indirectly back onto the disc surface. Only then is the foundation for the important final step created: the drying process!
The VINYL CLEANER - drying with no ifs, ands, or buts
Both surface and point suction rely on the vacuum created. The diminishing of the vacuum due to the aging of the apparatus, and the static charging of the disc caused by the effects of rubbing, are two main drawbacks of suction. Surface suction is generally characterized by the limited efficiency of dirt removal and loud vacuum cleaner-like noise. Point suction is typified by the slow speed of cleaning and complicated handling. Convenience is generally sacrificed in either case - both concepts in the main only allow one side of the disc to be cleaned at a time. Once again the VINYL CLEANER rips up the rule book! Both sides of the disc are cleaned and subsequently dried simultaneously. The gentle fan drying process is driven by two high-performance motors - with significantly lower noise, and with no creation of static!
Operation, handling and care
The VINYL CLEANER - maximum convenience
The VINYL CLEANER can justifiably claim to be the most user-friendly disc cleaner: operation, handling and care are all geared towards absolute simplicity and maximum convenience. Before first usage the VINYL CLEANER simply needs to be placed on a level surface, distilled water and cleaning fluid added, the wet filter be fitted and the apparatus plugged in - off you go!
Switch on the VINYL CLEANER, introduce a disc from above, press the start button - the cleaning and drying procedure run fully automatically, and you can get on with other jobs with no worries. The beginning and the end of the cleaning process are signaled both acoustically and by means of the LED display. Depending on the dirtiness of the particular disc the length of the main cleaning process can be individually set - simply at the touch of a button.
The VINYL CLEANER - easy to care for
To begin with a quick word regarding cleaning fluid: In order to treat the vinyl as gently as possible, and create the best possible sound, the cleaning fluid, specifically developed for the VINYL CLEANER, avoids the use of alcohol, instead relying on a mild biodegradable mixture with excellent cleaning properties and outstanding antistatic characteristics. Just one container of cleaning fluid concentrate - 2 are included in the delivery package - is enough to clean approximately 100-200 discs (depending on the level of disc contamination).
The wet filter is easy to clean: saturate with distilled water and ring out. The inspection interval for the wet filter is identical to the replacement of the cleaning fluid. The 4 microfibre-cleaning barrels are extremely robust and therefore only need to be replaced after approximately 500 completed cleaning operations.
The VINYL CLEANER - spare parts and accessories
1. Cleaning fluid concentrate (20 ml)
2. Microfibre-cleaning barrels
3. VINYL CLEANER wet filter
The VINYL CLEANER - technical data
- Cleaning of 12“-discs (300 mm diameter)
- Mains adapter with input voltage (110 - 240V, 50-60 Hz.)
- Capacity: approx. 4.5 L distilled water, 20 ml cleaning concentrate
- Cleaning time incl. drying: approx. 6 mins
- Weight without liquid: 8.5kg (19lbs) kg
- Dimensions: 300 x 200 x 270 mm (width x depth x height)
1 Review Hide Reviews Show Reviews
most of my albums are from the fifties & sixties, played on a portable phonograph player, cleaned up very well, believe the second time around will sound even better
